Mine and Telephone

Scope:

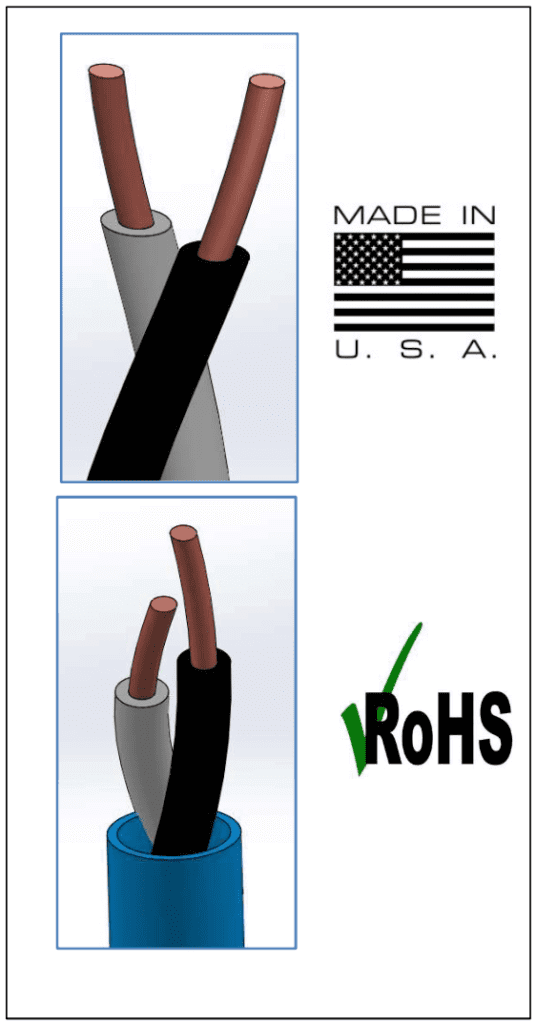

16, 15, 14, 12, 10 AWG insulated solid copper conductor with polyvinylchloride (PVC) insulation twisted. Optional PVC jacket with rip cord. Each conductor individually rated for a maximum temperature of 60°C in wet or dry locations for circuits not exceeding 600 volts. The twisted product is suitable for use as a communication (MineTelephone) cable.

Applicable Standards and Tests:
ASTM B-1, B-3, B-33, and B-8, UL 44 and UL83, CSA C22.2 No.271- 11, MSHA: Title 30, Part 18, Section 18.64, Part 7, Subpart K, Section 7.407.

Construction:
Conductors: Single copper conductors as solid, annealed or hard, coated or uncoated copper per UL and ASTM requirements.

Insulation: PVC (polyvinylchloride) shall be a nominal average thickness of 0.030” (.76mm) rated for an insulation resistance of 140 megaohms. To the extent specified, insulation shall comply with the requirements of UL 83. Each conductor shall be spark tested at 7500 VAC. Optional heavy duty 0.045” PVC jacket and rip cord for severe conditions.

Identification and Packaging:
Standard packaging is 500 and 1000 ft lengths on metal spools. Custom lengths are available upon request. 15 AWG/2 is recognized and approved by the Mine Safety Health Administration (MSHA.)

AWGStandard Number of StrandsInsulation / Jacket (opt.)Nominal ODCU/mftShip/mftLay
16Solid0.030 / 0.045 0.228 / 0.318 16 lbs30 / 53 lbs3"
15Solid0.030 / 0.0450.240 / 0.330 20 lbs34 / 58 lbs 3"
14Solid0.030 / 0.0450.260 / 0.350 25 lbs40 / 65 lbs 3"
12Solid0.030 / 0.0450.290 / 0.380 40 lbs52 / 80 lbs 3"
10Solid0.030 / 0.0450.330 / .420 66 lbs80 / 111 lbs3"
