When we think about “domestic or international,” flights are generally the first thing that comes to mind. But if you’ve ever traveled overseas, you’ve probably seen electrical outlets that don’t look like the ones you’re used to.
Outlets are outlets, right? It might seem that way, but there are subtle differences in how the electricity is delivered. Some countries, like the U.S., rely on 120V outlets, while those in Europe have more powerful 240V ones. Beyond that, the Hertz frequencies could be different, changing how appliances work.
There are more than a dozen types of outlets globally. Though many have similar designs, several factors dictate what power it’s packing. So why are there so many outlet types, why are voltages drastically different on other continents, and what impact do those differences ultimately have on the machines and appliances we plug into the wall?
Electricity has been around in some form for centuries, going back to the BC era, but only found practical use in the late 1800s.
Despite some controversy around him, Thomas Edison’s incandescent lightbulb in 1879 and subsequent power station in 1881 paved the way for today’s electrical technology. Edison Electric Light Company opened at Holborn Viaduct in London in early 1882, allowing electricity to freely flow into homes and businesses. Soon after, electrical generation plants began opening in the industrialized world.
In the United States, 120V became the standard because it was safer than 240V. Across Europe, Asia, and Africa, 230-240V became the go-to as it limited voltage losses during transmission and distribution. Other countries, like Japan, opted for only 100V, while countries in the Caribbean, like Cuba, Haiti, and Jamaica, use 110V as their standards.
Over time, more countries chose to use 230V as their standard voltage level, and the United States found itself hamstrung by its own innovation. Thanks to a massive uptick in electrical adoption and fast-paced technological advancements, products and appliances in the U.S. were designed for a 120V world. Plugging those same devices into an outlet delivering nearly double the voltage would quickly damage them.
Homes and businesses also had to contend with inconsistent voltages from either being too close or too far from transformers, which could also cause appliances to not work well. To fix everything, though, would be a monumental and expensive effort.
The United States did get to 240V eventually, despite the 120V standard. U.S. homes today are outfitted with split 120V electrical circuits that receive 240V on a main electrical panel. The lower voltage is used for devices like TVs, laptops, hair dryers, fans, and other less powerful appliances. Higher voltages are reserved for large appliances like stoves, refrigerators, pool pumps, hot tubs, and dryers.
Voltage isn’t the only difference in electrical outlets around the world.
Most countries, and typically those with 200-240V, use 50Hz frequencies. Countries like the U.S. and those with 100-120V systems use 60Hz. There are exceptions, as countries like the Philippines, South Korea, and Saudi Arabia use 220-230V and 60Hz.
Hertz directly impacts things like motor speeds and how fast lights flicker when they’re lit. If a 60Hz bulb is plugged into a 50Hz outlet, it flickers slower because the frequency is off. Lower (or higher) frequencies can also make it harder for products like clocks to operate, causing them to fall out of sync.
Hertz also impacts how transformers work. If the frequency isn’t right, transformers can eventually overheat and suffer damage.
Just like voltages, outlets and plugs may change based on your location.

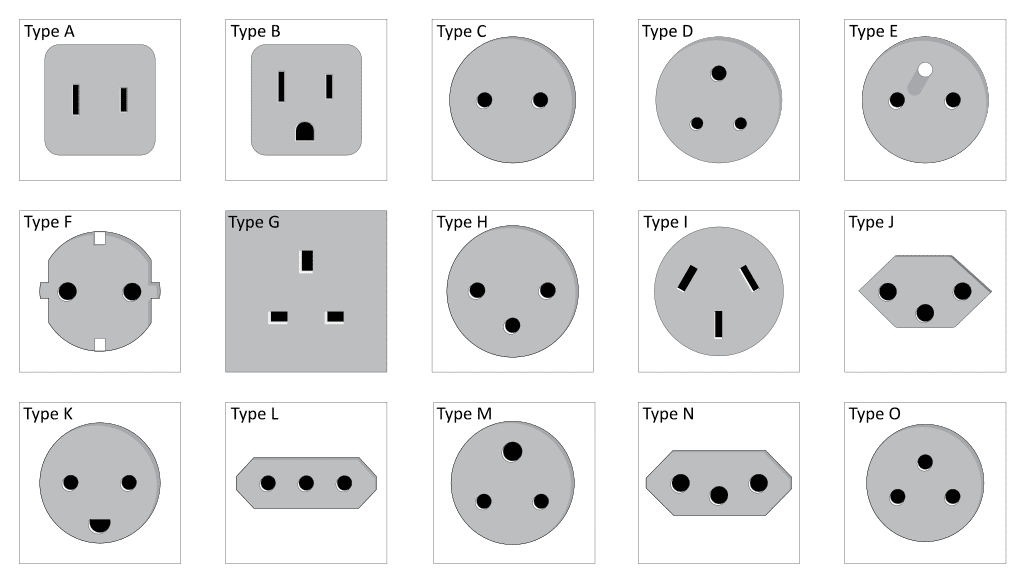

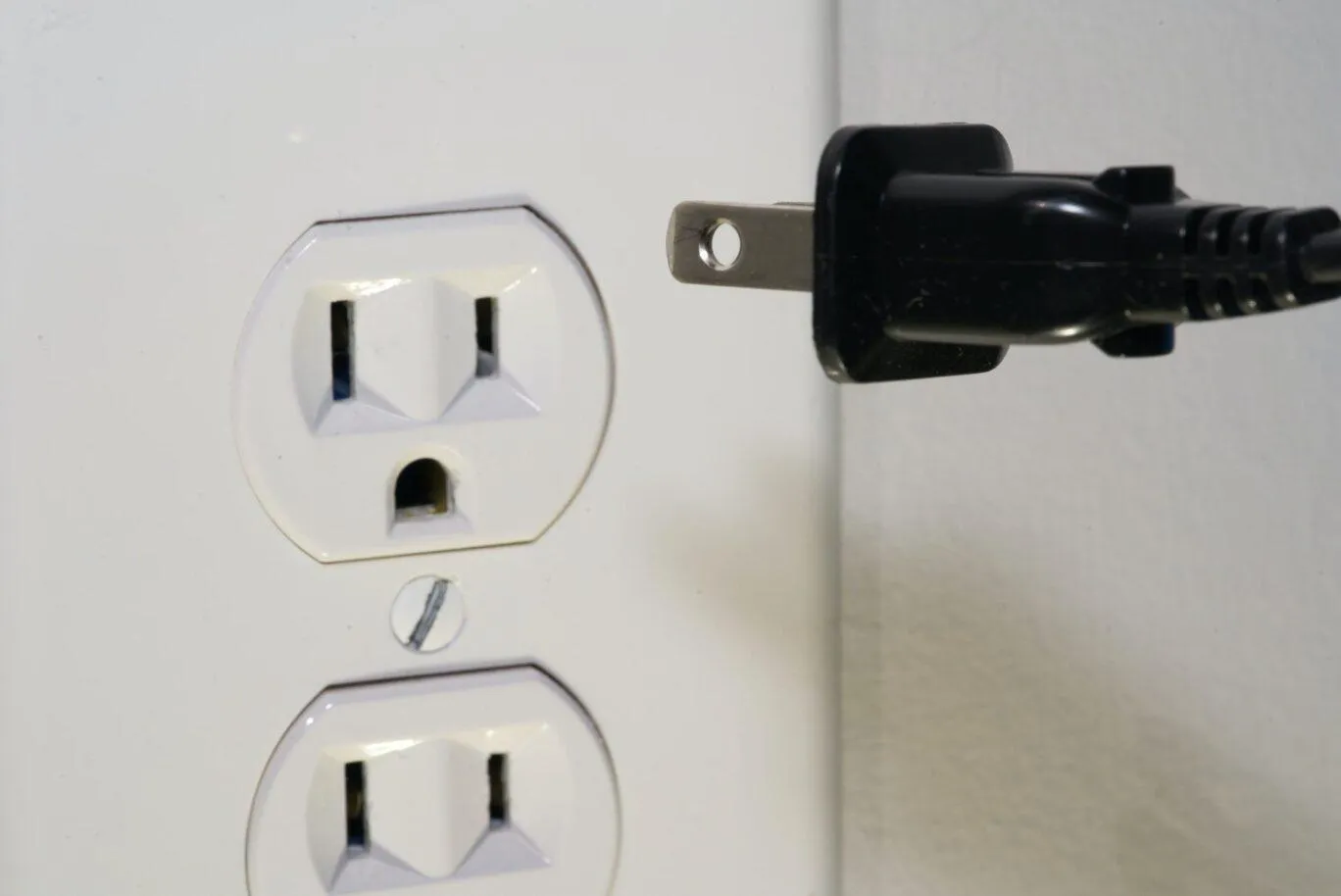

In the United States, outlets are either Type A or B. Type A has rectangular openings for the hot and neutral wires, and Type B outlets feature a third receptacle for the ground. Although the outlets are commonplace in North America, other types have better global penetration.
The Type C socket outlet is the world’s most popular, with many compatible (and grounded) outlet and plug types. Originally developed in Germany, the ungrounded two-pin Type C outlets became popular across Europe, Asia, the Middle East, and Africa. Though it was eventually replaced by the grounded and safer Type F outlet, the original two-pin outlet and plug design sparked other variations, including Types D, E, H, J, K, L, N, and O.
Pro Tip: Just because outlets look similar in different countries, it doesn’t mean your appliances will safely work when plugged in. Hertz frequencies, voltages, grounding, and phasing all determine whether connected appliances work as intended.
Guessing can lead to electrical damage, shock hazards, and other issues.
In American homes, Ground Fault Circuit Interrupters (GFCIs) are designed to protect you from electric shock by cutting power quickly when they detect current changes.
GFCI outlets can be found across North America, but are increasingly being replaced by GFCI circuit breakers to protect the entire home. The breaker-type outlets prevent accidental shocks and electrocution if something goes wrong.
In countries where the National Electrical Code (NEC) isn’t the law of the land, there are different rules and standards but similar electrical safety devices. For example, European homes are outfitted with Residual Current Devices (RCD), which trip once a current threshold is reached.
Unlike a GFCI, an RCD has a residual current threshold of 30mA. A GFCI outlet’s threshold is only 4-6mA, forcing it to trip earlier. Though both outlets can protect people and potentially save your life, the damage done to a person will differ.
Technology has come a long way since the early days of electric power, so why can’t everyone agree on a universal outlet and plug combo?
If you’ve ever tried ordering pizza for a group of people, the same thing happens every time; no one can agree. Some people hate pepperoni, others like lots of meat, and some have gluten intolerance and need a completely different pizza. Let’s not even talk about pineapples… (just kidding, everything has a place on pizza!)
In the case of outlets and plugs, countries have different standard voltages, Hertz frequencies, and electronic devices, all designed to work with the outlets and voltages they’re accustomed to. We can hope for a single solution, but it will likely be a monumental lift.
With so many different electrical standards in place, making wholesale changes in one country – let alone more than 200 – is a long, expensive, and drawn-out process. One solution could be to use universal adapters until permanent solutions are in place, but the world would need to settle on ONE standard outlet/plug combination.
Standardization could be useful in many situations, especially when traveling or trading between countries. It could also simplify some aspects of electrical education.
Unfortunately, standardization also comes with downsides. Depending on the outlet, millions of pieces of electrical equipment will instantly become obsolete without adapters. Over time, those machines and appliances must be retrofitted with new plugs or recycled.
There will also likely be countries that hold out because of the costs associated with changing how their electricity is delivered. And much like the metric system, mass adoption doesn’t always translate to global adoption – there will always be contrarians.
So, while it’s entirely possible the world could one day have a universal outlet and plug combination, it won’t occur anytime soon.
