RoHS Compliant Made in USA

Scope:

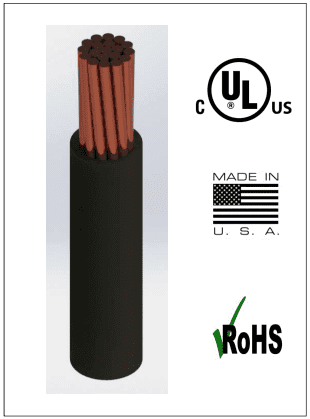

Single conductor, Type XHHW-2 or RW90 for use at 600 volts and 1,000 volts RoHS compliant. It is rated for a maximum continuous operating temperature between – 40°C and 90°C in wet and 105°C in dry locations. Dielectric constant, 3.5 or less.

Applicable Standards and Tests:

ASTM B-1, B-3, B-33, B-8, B-174, and ASTM 150, UL 44 and UL83, CSA C22.2 No.38-10, NEC NFPA 70, NEC 310, NEC 517.160, Fed Spec J-C-30B.

Construction:

Conductors:

Single bare copper conductors as solid or stranded, annealed or hard, tinned, or coated copper per UL and ASTM requirements.

**Extra flexible stranding may require a Minimum Order Quantity. Contact Kris-Tech Sales for more information.

Insulation:

Concentrically applied XLP (crosslinked polyethylene) is FT2, flame retardant, and “Oil and Gasoline Resistant I” rated. All black insulation is rated “Sunlight Resistant”. All colored insulation “Sunlight Resistant” rated in sizes #6 AWG and larger. CT (FT4) rated in sizes #1/0 and larger available by request. Colored insulation “Sunlight Resistant” rated in sizes #8 AWG and smaller available by request.



Identification and Packaging:

The wire shall be identified by surface marking indicating the manufacturer, conductor size, voltage rating, UL symbol, and type designation. Standard length spools have 500 or 2500 feet. Custom lengths, AWG, and custom packaging are available by request.

Print Wheel:

Kris-Tech Wire Co. #XX AWG (XX MM2) XLP type XHHW-2 600V and 1000V or RW90 600V 90C (-40C) wet or dry C(UL)US

Value Add Service:

  • Custom lengths and put-ups
  • 12 available colors
  • Wire paralleling and cabling
  • Wire striping
  • Custom print legends and labels
AWGStandard Number of StrandsExtra Flexible
Stranding
Insulation
Thickness
(Mils)
Nominal Overall
Diameter – Inches
(standard strands)
Approx.
Shipping
Weight 600/2KV
(Lbs./Mft.)
14Solid or 719, 41300.12" / 0.13"16 / 17
12Solid or 719, 65300.14" / 0.15"24 / 25
10Solid or 719, 105300.16" / 0.18"37 / 38
8Solid or 719, 133450.22" / 0.24"61 / 63
6Solid or 719, 133450.25" / 0.27"93 / 95
4Solid or 719, 133450.29" / 0.32"142 / 146
2719, 133450.38"226
119133550.44"288
1/019133550.48"357
2/01937550.53"447
3/01937550.58"556
4/01937550.64"696
MCMStandard Number of StrandsInsulation Thickness MilsNominal Overall Diameter – InchesApprox. Shipping Weight (Lbs./Mft.)
25037650.71”829
30037650.76”987
35037, 61650.81" / 0.82”1151 / 1148
40037650.90”1308
50037, 61650.94" / 0.95”1654 / 1623
